持续集成环境(5)-Maven安装和配置

持续集成环境(5)-Maven安装和配置

和jenkins安装在同一台机器上面

官方链接

https://maven.apache.org/

解压并解压搭配/opt目录下

[root@centos7 ~]# tar -xf apache-maven-4.0.0-alpha-5-bin.tar.gz -C /opt

修改名称

[root@centos7 ~]# mv /opt/apache-maven-4.0.0-alpha-5 /opt/maven

配置环境变量

vi /etc/profile
在最后一行添加如下内容，我这里安装的jdk11的
export JAVA_HOME=/usr/lib/jvm/java-11-openjdk-11.0.19.0.7-1.el7_9.x86_64/
export MAVEN_HOME=/opt/maven
export PATH=$PATH:$JAVA_HOME/bin:$MAVEN_HOME/bin

生效系统环境变量

[root@centos7 ~]# source /etc/profi

测试是否生效

[root@centos7 ~]# mvn --version
Apache Maven 4.0.0-alpha-5 (26d10a4bf9a2df75feef60da01d8706f2bf77a47)
Maven home: /opt/maven
Java version: 11.0.19, vendor: Red Hat, Inc., runtime: /usr/lib/jvm/java-11-openjdk-11.0.19.0.7-1.el7_9.x86_64
Default locale: en_US, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-1160.el7.x86_64", arch: "amd64", family: "unix"

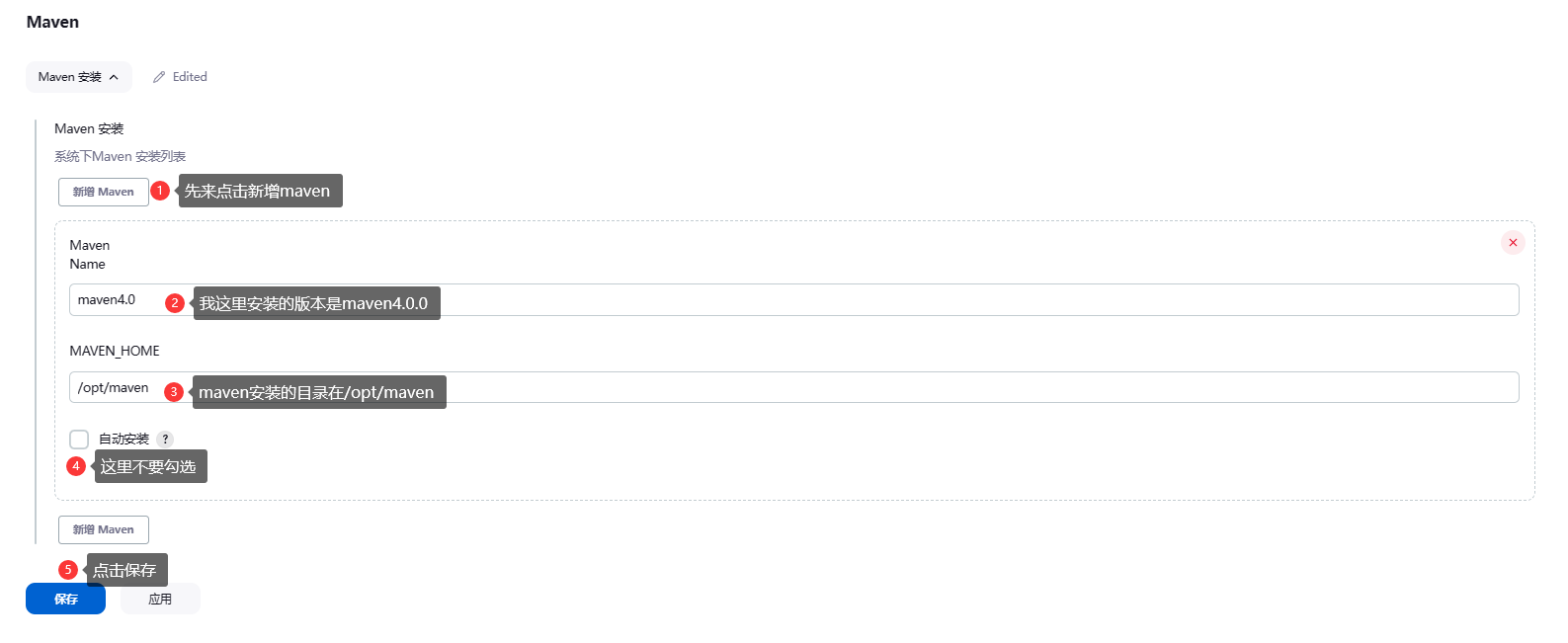

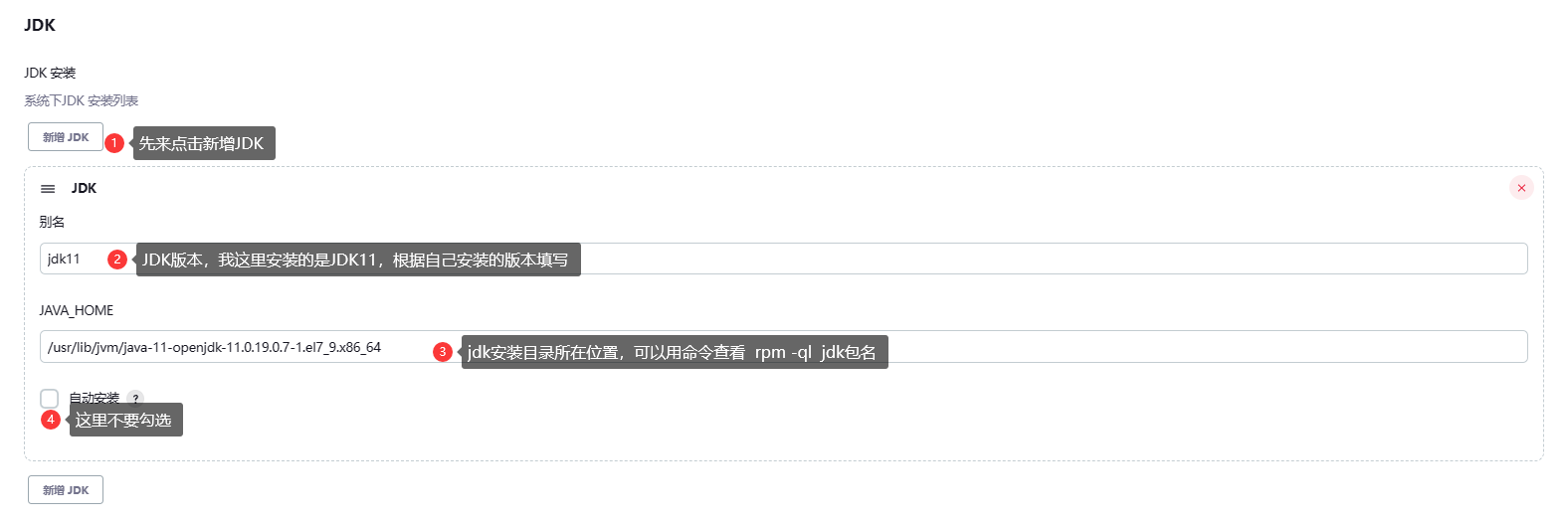

全局工具配置关联JDK和Maven

如果这里提示JDK不存在这类的提醒只需要把JDK-devel相关的开发的包安装上即可

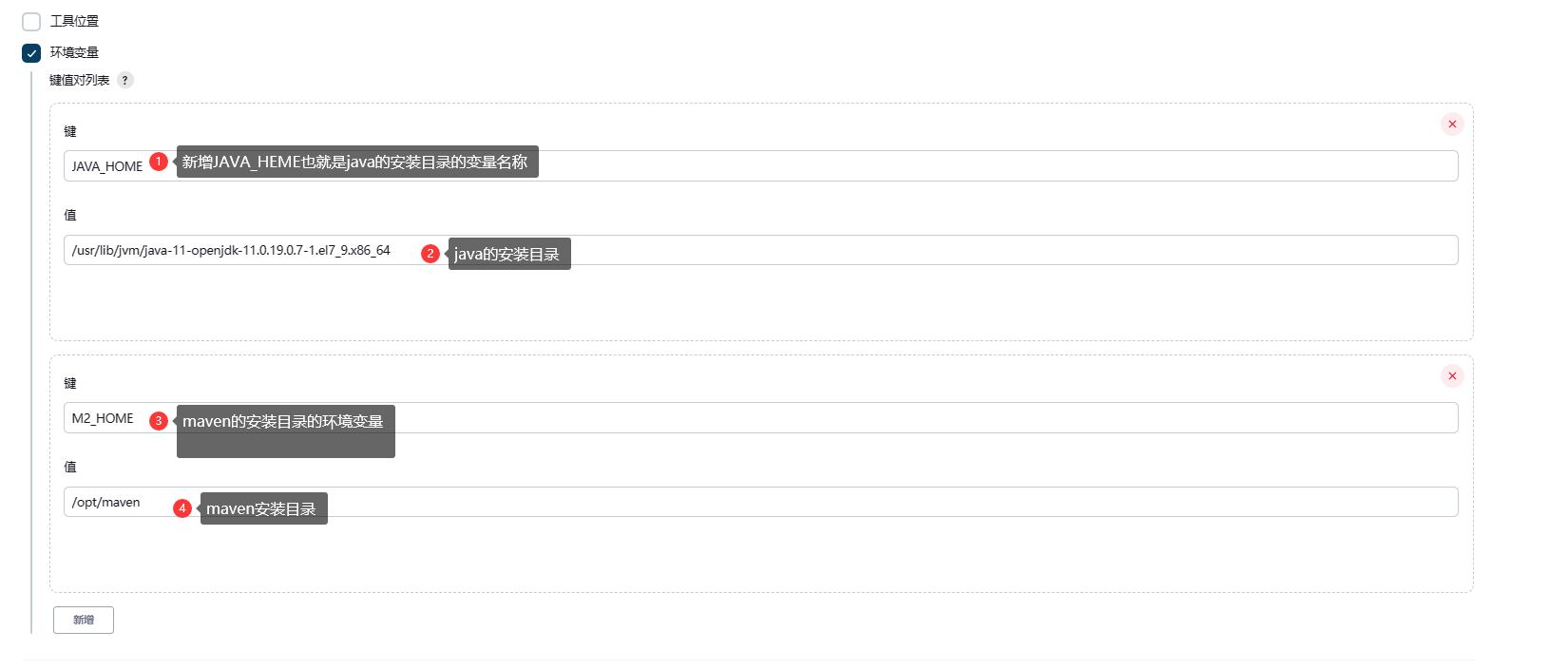

添加Jenkins全局变量

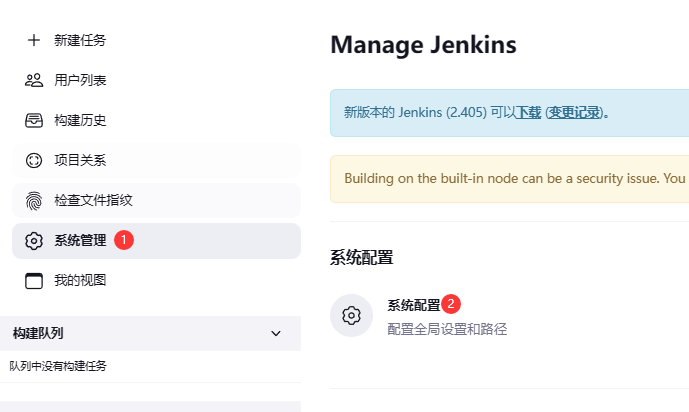

Manage Jenkins->Confifigure System->Global Properties ，添加三个全局变量

JAVA_HOME、M2_HOME、PATH+EXTRA

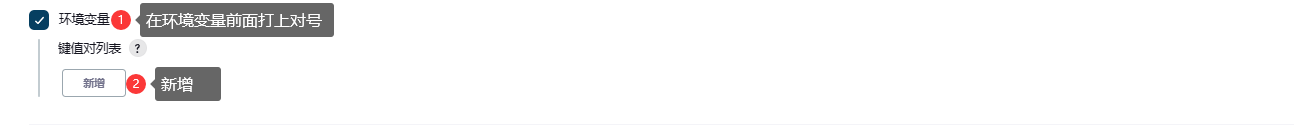

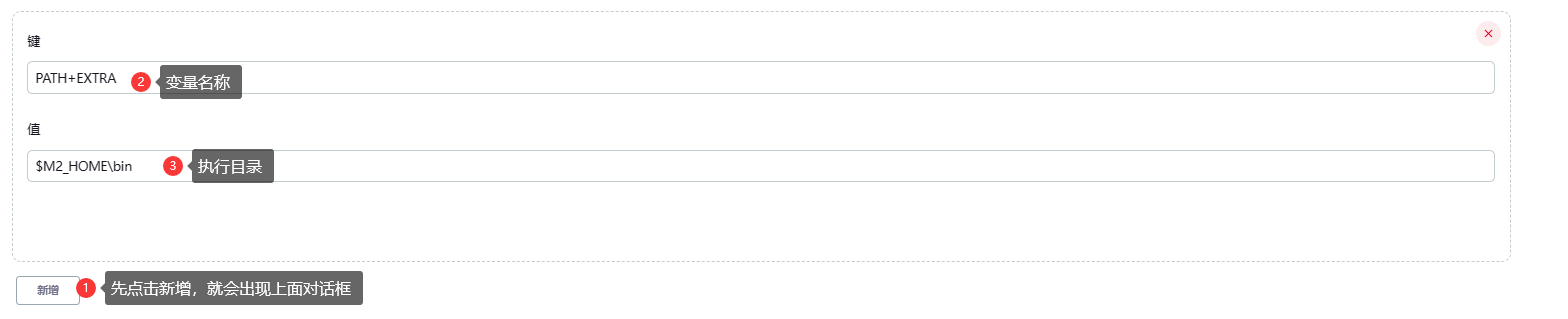

新增环境变量PATH+EXTRA

修改Maven的settings.xml

mkdir /root/repo
	创建本地仓库目录

vi /opt/maven/conf/settings.xml
	#本地仓库改为：/opt/repo/
找到  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ${user.home}/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->
找到入以上的内容,在下面添加一行
<localRepository>/opt/repo</localRepository>

添加阿里云私服地址：
找到以下内容
<!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
    <mirror>
      <id>maven-default-http-blocker</id>
      <mirrorOf>external:http:*</mirrorOf>
      <name>Pseudo repository to mirror external repositories initially using HTTP.</name>
      <url>http://0.0.0.0/</url>
      <blocked>true</blocked>
     </mirror>


在下面加入以下内容,详细信息看下面的截图
<mirror>
    <id>aliyun-public</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun public</name>
    <url>https://maven.aliyun.com/repository/public</url>
</mirror>

<mirror>
    <id>aliyun-central</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun central</name>
    <url>https://maven.aliyun.com/repository/central</url>
</mirror>

<mirror>
    <id>aliyun-spring</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun spring</name>
    <url>https://maven.aliyun.com/repository/spring</url>
</mirror>

<mirror>
    <id>aliyun-spring-plugin</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun spring-plugin</name>
    <url>https://maven.aliyun.com/repository/spring-plugin</url>
</mirror>

<mirror>
    <id>aliyun-apache-snapshots</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun apache-snapshots</name>
    <url>https://maven.aliyun.com/repository/apache-snapshots</url>
</mirror>

<mirror>
    <id>aliyun-google</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun google</name>
    <url>https://maven.aliyun.com/repository/google</url>
</mirror>

<mirror>
    <id>aliyun-gradle-plugin</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun gradle-plugin</name>
    <url>https://maven.aliyun.com/repository/gradle-plugin</url>
</mirror>

<mirror>
    <id>aliyun-jcenter</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun jcenter</name>
    <url>https://maven.aliyun.com/repository/jcenter</url>
</mirror>

<mirror>
    <id>aliyun-releases</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun releases</name>
    <url>https://maven.aliyun.com/repository/releases</url>
</mirror>

<mirror>
    <id>aliyun-snapshots</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun snapshots</name>
    <url>https://maven.aliyun.com/repository/snapshots</url>
</mirror>

<mirror>
    <id>aliyun-grails-core</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun grails-core</name>
    <url>https://maven.aliyun.com/repository/grails-core</url>
</mirror>

<mirror>
    <id>aliyun-mapr-public</id>
    <mirrorOf>*</mirrorOf>
    <name>aliyun mapr-public</name>
    <url>https://maven.aliyun.com/repository/mapr-public</url>
</mirror>

要在这一行上面添加如上内容.
 </mirrors>

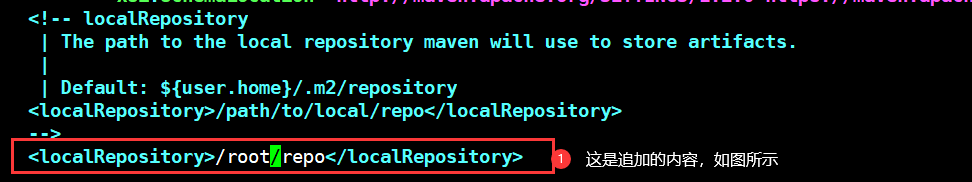

第一项修改截图

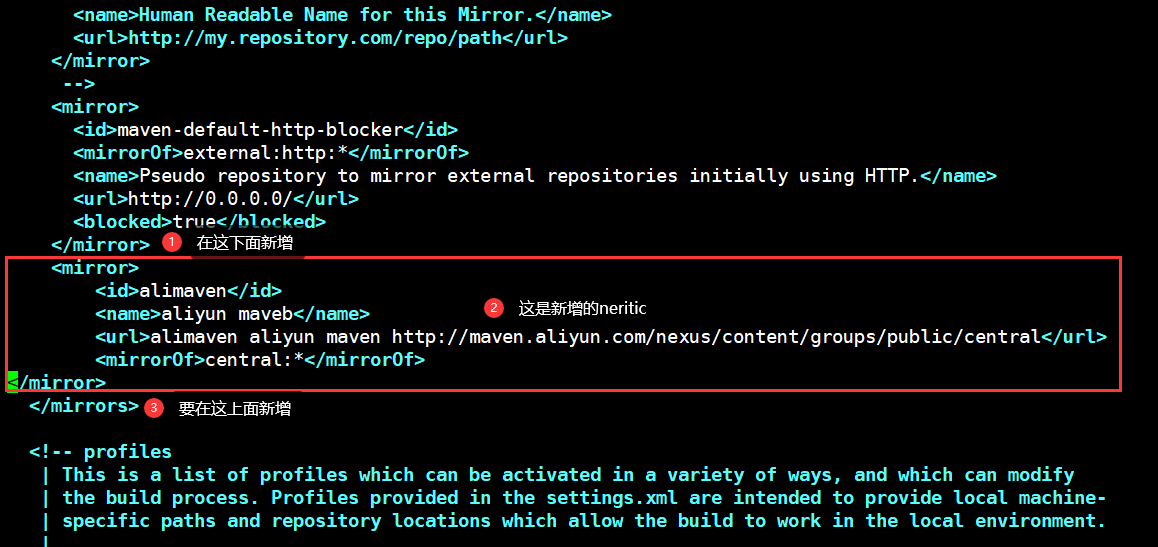

第二项修改截图.为了方便截图只添加一小部分内容，方便截图，一定要把所有的内容添加上

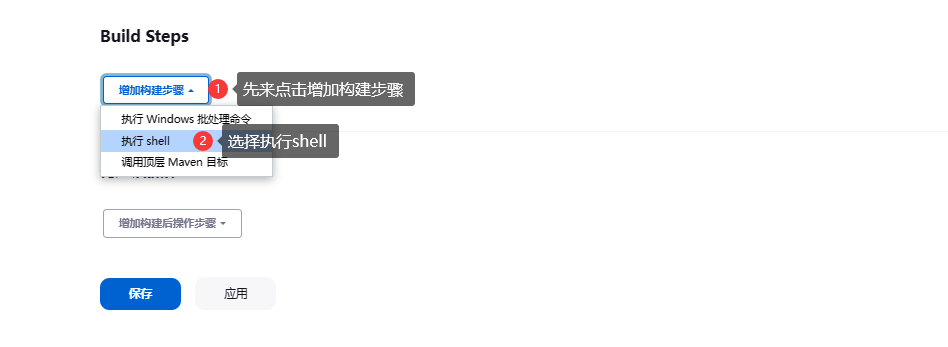

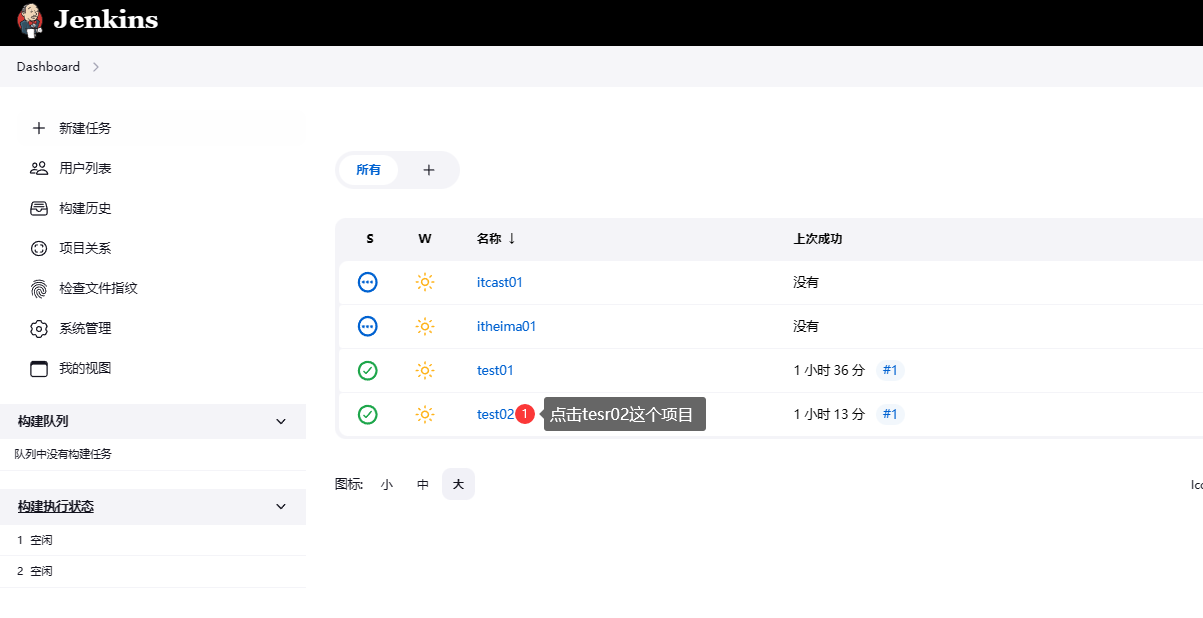

测试Maven是否配置成功

命令解释

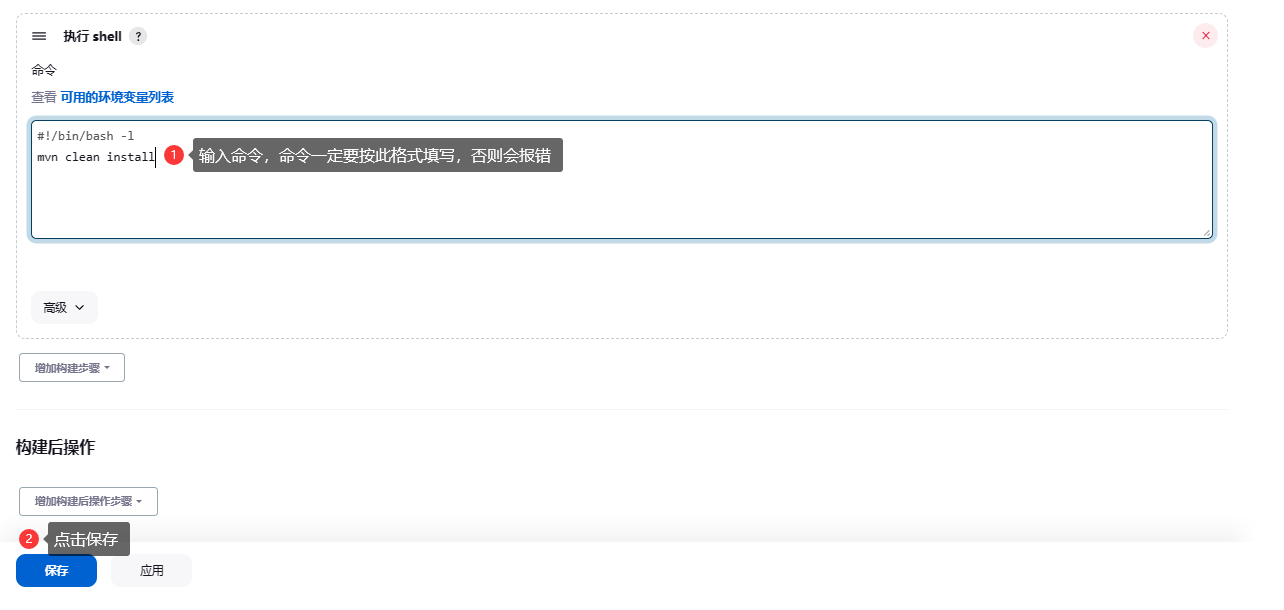

写入以下内容，一定要此格式填写
#!/bin/bash -l
mvn clean install



mvn clean
	执行清空操作，清空字节码和曾经构建的一些包

package
	重新打包

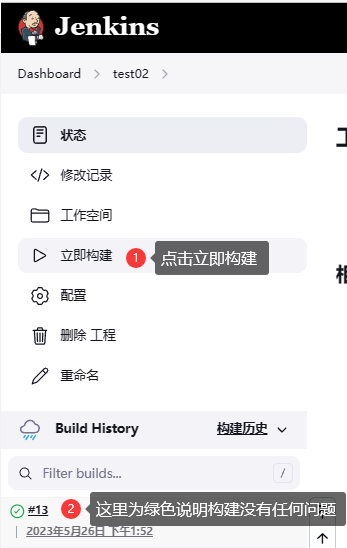

控制台输入结果如下

Started by user itcast
Running as SYSTEM
Building in workspace /var/lib/jenkins/workspace/test02
The recommended git tool is: NONE
using credential 304bf738-1cbb-4520-965b-ab2dc68d6ae2
 > git rev-parse --resolve-git-dir /var/lib/jenkins/workspace/test02/.git # timeout=10
Fetching changes from the remote Git repository
 > git config remote.origin.url git@10.0.0.20:zhangsan/web-demo.git # timeout=10
Fetching upstream changes from git@10.0.0.20:zhangsan/web-demo.git
 > git --version # timeout=10
 > git --version # 'git version 1.8.3.1'
using GIT_SSH to set credentials gitlab-auth-ssh
Verifying host key using known hosts file
 > git fetch --tags --progress git@10.0.0.20:zhangsan/web-demo.git +refs/heads/*:refs/remotes/origin/* # timeout=10
 > git rev-parse refs/remotes/origin/master^{commit} # timeout=10
Checking out Revision 54589616f1f071acd7006c369919c5ba3e98395b (refs/remotes/origin/master)
 > git config core.sparsecheckout # timeout=10
 > git checkout -f 54589616f1f071acd7006c369919c5ba3e98395b # timeout=10
Commit message: "第八次提交"
 > git rev-list --no-walk 54589616f1f071acd7006c369919c5ba3e98395b # timeout=10
[test02] $ /bin/sh -xe /tmp/jenkins4993178190035478849.sh
[test02] $ /bin/bash -l /tmp/jenkins2696623148703012810.sh
[INFO] Scanning for projects...
[INFO]
[INFO] ------------------------< com.itheima:web_demo >------------------------
[INFO] Building web_demo 1.0-SNAPSHOT
[INFO]   from pom.xml
[INFO] --------------------------------[ war ]---------------------------------
[WARNING] Version not locked for default bindings plugins [maven-clean-plugin, maven-resources-plugin, maven-compiler-plugin, maven-surefire-plugin, maven-war-plugin, maven-install-plugin], you should define versions in pluginManagement section of your pom.xml or parent
[INFO]
[INFO] --- clean:3.2.0:clean (default-clean) @ web_demo ---
[INFO] Deleting /var/lib/jenkins/workspace/test02/target
[INFO]
[INFO] --- resources:3.3.0:resources (default-resources) @ web_demo ---
[WARNING] File encoding has not been set, using platform encoding UTF-8. Build is platform dependent!
[WARNING] See https://maven.apache.org/general.html#encoding-warning
[WARNING] Using platform encoding (UTF-8 actually) to copy filtered resources, i.e. build is platform dependent!
[INFO] skip non existing resourceDirectory /var/lib/jenkins/workspace/test02/src/main/resources
[INFO] skip non existing resourceDirectory /var/lib/jenkins/workspace/test02/src/main/resources-filtered
[INFO]
[INFO] --- compiler:3.10.1:compile (default-compile) @ web_demo ---
[INFO] Changes detected - recompiling the module!
[WARNING] File encoding has not been set, using platform encoding UTF-8, i.e. build is platform dependent!
[INFO] Compiling 1 source file to /var/lib/jenkins/workspace/test02/target/classes
[INFO]
[INFO] --- resources:3.3.0:testResources (default-testResources) @ web_demo ---
[WARNING] File encoding has not been set, using platform encoding UTF-8. Build is platform dependent!
[WARNING] See https://maven.apache.org/general.html#encoding-warning
[WARNING] Using platform encoding (UTF-8 actually) to copy filtered resources, i.e. build is platform dependent!
[INFO] skip non existing resourceDirectory /var/lib/jenkins/workspace/test02/src/test/resources
[INFO] skip non existing resourceDirectory /var/lib/jenkins/workspace/test02/src/test/resources-filtered
[INFO]
[INFO] --- compiler:3.10.1:testCompile (default-testCompile) @ web_demo ---
[INFO] No sources to compile
[INFO]
[INFO] --- surefire:3.0.0:test (default-test) @ web_demo ---
[INFO] No tests to run.
[INFO]
[INFO] --- war:3.3.2:war (default-war) @ web_demo ---
[INFO] Packaging webapp
[INFO] Assembling webapp [web_demo] in [/var/lib/jenkins/workspace/test02/target/web_demo-1.0-SNAPSHOT]
[INFO] Processing war project
[INFO] Copying webapp resources [/var/lib/jenkins/workspace/test02/src/main/webapp]
[INFO] Building war: /var/lib/jenkins/workspace/test02/target/web_demo-1.0-SNAPSHOT.war
[INFO]
[INFO] --- install:3.1.0:install (default-install) @ web_demo ---
[INFO] Installing /var/lib/jenkins/workspace/test02/target/web_demo-1.0-SNAPSHOT.war to /opt/repo/com/itheima/web_demo/1.0-SNAPSHOT/web_demo-1.0-SNAPSHOT.war
[INFO] Installing /var/lib/jenkins/workspace/test02/target/consumer3163221908713468455pom to /opt/repo/com/itheima/web_demo/1.0-SNAPSHOT/web_demo-1.0-SNAPSHOT.pom
[INFO] Copying com.itheima:web_demo:pom:1.0-SNAPSHOT to project local repository
[INFO] Copying com.itheima:web_demo:war:1.0-SNAPSHOT to project local repository
[INFO] Copying com.itheima:web_demo:pom:consumer:1.0-SNAPSHOT to project local repository
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  2.484 s
[INFO] Finished at: 2023-05-26T13:52:18+08:00
[INFO] ------------------------------------------------------------------------
Finished: SUCCESS
