ELK


系统ubuntu20.04

	es集群:
		对于ES集群来说,一旦环境搭建好之后,最好不要乱动主机名
			一旦乱动主机名,集群崩溃 -- 或者数据不同步
		如果不小心更新了主机名?
			重新搭建环境
				- 首先删除 /var/lib/elasticsearch/nodes/0/ 目录下的文件


ip规划

172.16.0.160 elastic-master.sswang.com elastic-master

172.16.0.161 elastic-slave1.sswang.com elastic-slave1

172.16.0.162 elastic-slave2.sswang.com elastic-slave1

首先三台机器修改主机名

172.16.0.160
root@elastic-master:~# hostnamectl set-hostname elastic-master

172.16.0.161
root@elastic-slave:~# hostnamectl set-hostname elastic-slave1

172.16.0.162
root@elastic-slave:~# hostnamectl set-hostname elastic-slave2


修改hosts做主机名解析

#三台机器同时写入
172.16.0.160 elastic-master.sswang.com elastic-master

172.16.0.161 elastic-slave1.sswang.com elastic-slave2

172.16.0.162 elastic-slave2.sswang.com elastic-slave3


做免密码登录

首先在172.16.0.160上面做好免密码的密钥

root@elastic-master:~# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa
Your public key has been saved in /root/.ssh/id_rsa.pub
The key fingerprint is:
SHA256:7rtIY8pjy1NIr7ijAmxv5Xa8dBd2C6QHHz2w0s1JBpg root@elastic-master
The key's randomart image is:
+---[RSA 3072]----+
|          oo.o   |
|         E. O .  |
|         o = *   |
|    .     * . .  |
|.  . o  S. * .   |
|.o  ..o.  o + .  |
|o ..oo=... . .   |
|. o==*.*. .      |
|o.o+*+o.=o       |
+----[SHA256]-----+


再把做好的密钥文件拷贝到172.16.0.161和172.16.0.162上面去

root@elastic-master:~# ssh-copy-id elastic-slave1
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
The authenticity of host 'elastic-slave1 (172.16.0.161)' can't be established.
ECDSA key fingerprint is SHA256:e6246AoozwtEjYmPqU/mS4fWncpxKvoXtPgl9ZswNwQ.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes 输入yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@elastic-slave1's password: 输入密码

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'elastic-slave1'"
and check to make sure that only the key(s) you wanted were added.

root@elastic-master:~# ssh-copy-id elastic-slave2
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
The authenticity of host 'elastic-slave2 (172.16.0.162)' can't be established.
ECDSA key fingerprint is SHA256:e6246AoozwtEjYmPqU/mS4fWncpxKvoXtPgl9ZswNwQ.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes 输入yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@elastic-slave2's password: 输入密码

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'elastic-slave2'"
and check to make sure that only the key(s) you wanted were added.

root@elastic-master:~# ssh-copy-id elastic-master
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
The authenticity of host 'elastic-master (172.16.0.160)' can't be established.
ECDSA key fingerprint is SHA256:e6246AoozwtEjYmPqU/mS4fWncpxKvoXtPgl9ZswNwQ.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes 输入yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@elastic-master's password: 输入密码

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'elastic-master'"
and check to make sure that only the key(s) you wanted were added.


或者用expect做绵密钥认证,上面的做了这个就不用做配置

上面的做了这个就不用做配置了
首先安装expect
	apt install expect -y

生成密钥
	ssh-keygen -t rsa -p "" -f /root/.ssh/id_rsa

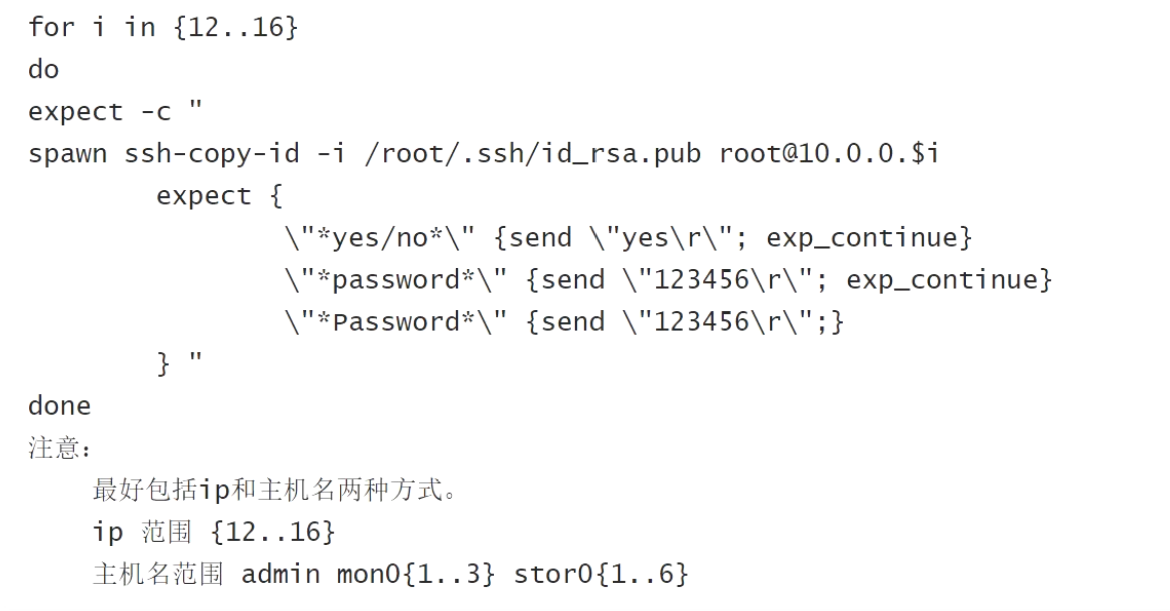

脚本密钥免手动配置

for i in {160..162}
do
expect -c "
spawn ssh-copy-id -i /root/.ssh/id_rsa.pub root@172.16.0.$i
	expect {
		\"*yes/no*\" {send \"yes\r\";exp_continue}
		\"*password*\" {send \"123456\r\"; exp_continue}
		\"*password*\" {send \"123456\r\";}
	}"
done



172.16.0.160安装jdk

上传jdk包
包名jdk-8u261-linux-x64.tar.gz
安装jdk,首先创建目录,172.16.0.160上面操作
	root@elastic-master:~# mkdir -p /data/{softs,server}

解压jdk到/data/server下
	root@elastic-master:~# tar -xf jdk-8u261-linux-x64.tar.gz -C /data/server/

创建软连接,方便后期升级调用
	root@elastic-master:~# ln -s /data/server/jdk1.8.0_261/ /data/server/java

配置jdk的全局环境变量
	root@elastic-master:~# echo 'export JAVA_HOME=/data/server/java' >> /etc/profile
	root@elastic-master:~# echo 'export JRE_HOME=$JAVA_HOME/jre' >> /etc/profile
	root@elastic-master:~# echo 'export CLASSPATH=$JAVA_HOME/lib/tools.jar:$JAVA_HOME/liv/dt.jat' >> /etc/profile
	root@elastic-master:~# echo 'export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$PATH' >> /etc/profile

让环境变量生效
	root@elastic-master:~# source /etc/profile
	root@elastic-master:~# java -version
	java version "1.8.0_261"
	Java(TM) SE Runtime Environment (build 1.8.0_261-b12)
	Java HotSpot(TM) 64-Bit Server VM (build 25.261-b12, mixed mode)



172.16.0.161安装jdk

上传jdk包
包名jdk-8u261-linux-x64.tar.gz
安装jdk,首先创建目录,172.16.0.161上面操作
	root@elastic-slave1:~#r:~# mkdir -p /data/{softs,server}

解压jdk到/data/server下
	root@elastic-master:~# tar -xf jdk-8u261-linux-x64.tar.gz -C /data/server/

创建软连接,方便后期升级调用
	root@elastic-slave1:~# ln -s /data/server/jdk1.8.0_261/ /data/server/java

配置jdk的全局环境变量
	root@elastic-slave1:~# echo 'export JAVA_HOME=/data/server/java' >> /etc/profile
	root@elastic-slave1:~# echo 'export JRE_HOME=$JAVA_HOME/jre' >> /etc/profile
	root@elastic-slave1:~# echo 'export CLASSPATH=$JAVA_HOME/lib/tools.jar:$JAVA_HOME/liv/dt.jat' >> /etc/profile
	root@elastic-slave2:~# echo 'export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$PATH' >> /etc/profile

让环境变量生效
    root@elastic-slave1:~# source /etc/profile
	root@elastic-slave1:~# java -version
	java version "1.8.0_261"
	Java(TM) SE Runtime Environment (build 1.8.0_261-b12)
	Java HotSpot(TM) 64-Bit Server VM (build 25.261-b12, mixed mode)


172.16.0.162安装jd

上传jdk包
包名jdk-8u261-linux-x64.tar.gz
安装jdk,首先创建目录,172.16.0.162上面操作
	root@elastic-slave2:~#r:~# mkdir -p /data/{softs,server}

解压jdk到/data/server下
	root@elastic-master:~# tar -xf jdk-8u261-linux-x64.tar.gz -C /data/server/

创建软连接,方便后期升级调用
	root@elastic-slave2:~# ln -s /data/server/jdk1.8.0_261/ /data/server/java

配置jdk的全局环境变量
	root@elastic-slave2:~# echo 'export JAVA_HOME=/data/server/java' >> /etc/profile
	root@elastic-slave2:~# echo 'export JRE_HOME=$JAVA_HOME/jre' >> /etc/profile
	root@elastic-slave2:~# echo 'export CLASSPATH=$JAVA_HOME/lib/tools.jar:$JAVA_HOME/liv/dt.jat' >> /etc/profile
	root@elastic-slave2:~# echo 'export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$PATH' >> /etc/profile

让环境变量生效
    root@elastic-slave2:~# source /etc/profile
	root@elastic-slave2:~# java -version
	java version "1.8.0_261"
	Java(TM) SE Runtime Environment (build 1.8.0_261-b12)
	Java HotSpot(TM) 64-Bit Server VM (build 25.261-b12, mixed mode)


172.16.0.160安装Elasticsearch 7.14.0

上传Elasticsearch 7.14.0的包
下载地址:https://www.elastic.co/cn/downloads/past-releases/elasticsearch-7-14-0
包名Elasticsearch 7.14.0
安装Elasticsearch 7.14.0
	root@elastic-master:~# dpkg -i elasticsearch-7.14.0-amd64.deb
	返回结果:
	Selecting previously unselected package elasticsearch.
	(Reading database ... 76547 files and directories currently installed.)
	Preparing to unpack elasticsearch-7.14.0-amd64.deb ...
	Creating elasticsearch group... OK
	Creating elasticsearch user... OK
	Unpacking elasticsearch (7.14.0) ...
	Setting up elasticsearch (7.14.0) ...
	### NOT starting on installation, please execute the following statements to configure elasticsearch 		service to start automatically using systemd
	 sudo systemctl daemon-reload
	 sudo systemctl enable elasticsearch.service
	### You can start elasticsearch service by executing
	 sudo systemctl start elasticsearch.service
	warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
	Future versions of Elasticsearch will require Java 11; your Java version from 					[/data/server/jdk1.8.0_261/jre] does not meet this requirement. Consider switching to a distribution of 	Elasticsearch with a bundled JDK. If you are already using a distribution with a bundled JDK, ensure the 	JAVA_HOME environment variable is not set.
	Created elasticsearch keystore in /etc/elasticsearch/elasticsearch.keystore
	Processing triggers for systemd (245.4-4ubuntu3.11) ...


Elasticsearch配置文件文件存放路径

Elasticsearch配置文件文件存放路径


Elasticsearch配置文件详情修改之前建议先备份

先备份配置文件
root@elastic-master:~# cp /etc/elasticsearch/elasticsearch.yml{,.bak}
root@elastic-master:~# vim /etc/elasticsearch/elasticsearch.yml
内容
#cluster.name: my-application
	es集群的名称

#node.name: node-1
	集群内的机器主机名或者ip地址

path.data: /var/lib/elasticsearch
	数据库存储目录的详细位置,如果有单独的分区或者高性能的磁盘可以把目录改成相应的目录里

path.logs: /var/log/elasticsearch
	日志存放目录

#network.host: 192.168.0.1
	对外的ip地址,建议改成0.0.0.0

#http.port: 9200
	对外的端口,客户端端口,数据内部通讯端口为9300

#discovery.seed_hosts: ["host1", "host2"]
	主机发现,集群

#cluster.initial_master_nodes: ["node-1", "node-2"]
	在初始化的时候谁可以做为主,可以多台同时作为主


172.16.0.160修改配置文件elasticsearch.yml

root@elastic-master:~# vim /etc/elasticsearch/elasticsearch.yml
如下内容
# ======================== Elasticsearch Configuration =========================
#
# NOTE: Elasticsearch comes with reasonable defaults for most settings.
#       Before you set out to tweak and tune the configuration, make sure you
#       understand what are you trying to accomplish and the consequences.
#
# The primary way of configuring a node is via this file. This template lists
# the most important settings you may want to configure for a production cluster.
#
# Please consult the documentation for further information on configuration options:
# https://www.elastic.co/guide/en/elasticsearch/reference/index.html
#
# ---------------------------------- Cluster -----------------------------------
#
# Use a descriptive name for your cluster:
#
cluster.name: elastic.example.com
#
# ------------------------------------ Node ------------------------------------
#
# Use a descriptive name for the node:
#
node.name: 172.16.0.160
#
# Add custom attributes to the node:
#
#node.attr.rack: r1
#
# ----------------------------------- Paths ------------------------------------
#
# Path to directory where to store the data (separate multiple locations by comma):
#
path.data: /var/lib/elasticsearch
#
# Path to log files:
#
path.logs: /var/log/elasticsearch
#
# ----------------------------------- Memory -----------------------------------
#
# Lock the memory on startup:
#
#bootstrap.memory_lock: true
#
# Make sure that the heap size is set to about half the memory available
# on the system and that the owner of the process is allowed to use this
# limit.
#
# Elasticsearch performs poorly when the system is swapping the memory.
#
# ---------------------------------- Network -----------------------------------
#
# By default Elasticsearch is only accessible on localhost. Set a different
# address here to expose this node on the network:
#
network.host: 0.0.0.0
#
# By default Elasticsearch listens for HTTP traffic on the first free port it
# finds starting at 9200. Set a specific HTTP port here:
#
http.port: 9200
#
# For more information, consult the network module documentation.
#
# --------------------------------- Discovery ----------------------------------
#
# Pass an initial list of hosts to perform discovery when this node is started:
# The default list of hosts is ["127.0.0.1", "[::1]"]
#
discovery.seed_hosts: ["172.16.0.160", "172.16.0.161", "172.16.0.162"]
#
# Bootstrap the cluster using an initial set of master-eligible nodes:
#
cluster.initial_master_nodes: ["172.16.0.160", "172.16.0.161", "172.16.0.162"]
#
# For more information, consult the discovery and cluster formation module documentation.
#
# ---------------------------------- Various -----------------------------------
#
# Require explicit names when deleting indices:
#
#action.destructive_requires_name: true
#
# 开启跨域访问支持,默认为false
http.cors.enabled: true
# 跨域访问允许的域名地址,(允许所有域名)以上使用正则
http.cors.allow-origin: "*"


172.16.0.161安装Elasticsearch 7.14.0

上传Elasticsearch 7.14.0的包
下载地址:https://www.elastic.co/cn/downloads/past-releases/elasticsearch-7-14-0
包名Elasticsearch 7.14.0
安装Elasticsearch 7.14.0
	root@elastic-slave1:~# dpkg -i elasticsearch-7.14.0-amd64.deb
	返回结果:
	Selecting previously unselected package elasticsearch.
	(Reading database ... 76547 files and directories currently installed.)
	Preparing to unpack elasticsearch-7.14.0-amd64.deb ...
	Creating elasticsearch group... OK
	Creating elasticsearch user... OK
	Unpacking elasticsearch (7.14.0) ...
	Setting up elasticsearch (7.14.0) ...
	### NOT starting on installation, please execute the following statements to configure elasticsearch
	service to start automatically using systemd
	 sudo systemctl daemon-reload
	 sudo systemctl enable elasticsearch.service
	### You can start elasticsearch service by executing
	 sudo systemctl start elasticsearch.service
	warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
	Future versions of Elasticsearch will require Java 11; your Java version from
	[/data/server/jdk1.8.0_261/jre] does not meet this requirement. Consider switching to a distribution of
	Elasticsearch with a bundled JDK. If you are already using a distribution with a bundled JDK, ensure the
	JAVA_HOME environment variable is not set.
	Created elasticsearch keystore in /etc/elasticsearch/elasticsearch.keystore
	Processing triggers for systemd (245.4-4ubuntu3.11) ...


修改配置文件

root@elastic-slave1:~# vim /etc/elasticsearch/elasticsearch.yml


# ======================== Elasticsearch Configuration =========================
#
# NOTE: Elasticsearch comes with reasonable defaults for most settings.
#       Before you set out to tweak and tune the configuration, make sure you
#       understand what are you trying to accomplish and the consequences.
#
# The primary way of configuring a node is via this file. This template lists
# the most important settings you may want to configure for a production cluster.
#
# Please consult the documentation for further information on configuration options:
# https://www.elastic.co/guide/en/elasticsearch/reference/index.html
#
# ---------------------------------- Cluster -----------------------------------
#
# Use a descriptive name for your cluster:
#
cluster.name: elastic.example.com
#
# ------------------------------------ Node ------------------------------------
#
# Use a descriptive name for the node:
#
node.name: 172.16.0.161
#
# Add custom attributes to the node:
#
#node.attr.rack: r1
#
# ----------------------------------- Paths ------------------------------------
#
# Path to directory where to store the data (separate multiple locations by comma):
#
path.data: /var/lib/elasticsearch
#
# Path to log files:
#
path.logs: /var/log/elasticsearch
#
# ----------------------------------- Memory -----------------------------------
#
# Lock the memory on startup:
#
#bootstrap.memory_lock: true
#
# Make sure that the heap size is set to about half the memory available
# on the system and that the owner of the process is allowed to use this
# limit.
#
# Elasticsearch performs poorly when the system is swapping the memory.
#
# ---------------------------------- Network -----------------------------------
#
# By default Elasticsearch is only accessible on localhost. Set a different
# address here to expose this node on the network:
#
network.host: 0.0.0.0
#
# By default Elasticsearch listens for HTTP traffic on the first free port it
# finds starting at 9200. Set a specific HTTP port here:
#
http.port: 9200
#
# For more information, consult the network module documentation.
#
# --------------------------------- Discovery ----------------------------------
#
# Pass an initial list of hosts to perform discovery when this node is started:
# The default list of hosts is ["127.0.0.1", "[::1]"]
#
discovery.seed_hosts: ["172.16.0.160", "172.16.0.161", "172.16.0.162"]
#
# Bootstrap the cluster using an initial set of master-eligible nodes:
#
cluster.initial_master_nodes: ["172.16.0.160", "172.16.0.161", "172.16.0.162"]
#
# For more information, consult the discovery and cluster formation module documentation.
#
# ---------------------------------- Various -----------------------------------
#
# Require explicit names when deleting indices:
#
#action.destructive_requires_name: true
#
# 开启跨域访问支持,默认为false
http.cors.enabled: true
# 跨域访问允许的域名地址,(允许所有域名)以上使用正则
http.cors.allow-origin: "*"


172.16.0.162安装Elasticsearch 7.14.0

上传Elasticsearch 7.14.0的包
下载地址:https://www.elastic.co/cn/downloads/past-releases/elasticsearch-7-14-0
包名Elasticsearch 7.14.0
安装Elasticsearch 7.14.0
	root@elastic-slave2:~# dpkg -i elasticsearch-7.14.0-amd64.deb
	返回结果:
	Selecting previously unselected package elasticsearch.
	(Reading database ... 76547 files and directories currently installed.)
	Preparing to unpack elasticsearch-7.14.0-amd64.deb ...
	Creating elasticsearch group... OK
	Creating elasticsearch user... OK
	Unpacking elasticsearch (7.14.0) ...
	Setting up elasticsearch (7.14.0) ...
	### NOT starting on installation, please execute the following statements to configure elasticsearch 		service to start automatically using systemd
	 sudo systemctl daemon-reload
	 sudo systemctl enable elasticsearch.service
	### You can start elasticsearch service by executing
	 sudo systemctl start elasticsearch.service
	warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
	Future versions of Elasticsearch will require Java 11; your Java version from 					[/data/server/jdk1.8.0_261/jre] does not meet this requirement. Consider switching to a distribution of 	Elasticsearch with a bundled JDK. If you are already using a distribution with a bundled JDK, ensure the 	JAVA_HOME environment variable is not set.
	Created elasticsearch keystore in /etc/elasticsearch/elasticsearch.keystore
	Processing triggers for systemd (245.4-4ubuntu3.11) ...


修改配置文件

root@elastic-slave2:~# vim /etc/elasticsearch/elasticsearch.yml
# ======================== Elasticsearch Configuration =========================
#
# NOTE: Elasticsearch comes with reasonable defaults for most settings.
#       Before you set out to tweak and tune the configuration, make sure you
#       understand what are you trying to accomplish and the consequences.
#
# The primary way of configuring a node is via this file. This template lists
# the most important settings you may want to configure for a production cluster.
#
# Please consult the documentation for further information on configuration options:
# https://www.elastic.co/guide/en/elasticsearch/reference/index.html
#
# ---------------------------------- Cluster -----------------------------------
#
# Use a descriptive name for your cluster:
#
cluster.name: elastic.example.com
#
# ------------------------------------ Node ------------------------------------
#
# Use a descriptive name for the node:
#
node.name: 172.16.0.162
#
# Add custom attributes to the node:
#
#node.attr.rack: r1
#
# ----------------------------------- Paths ------------------------------------
#
# Path to directory where to store the data (separate multiple locations by comma):
#
path.data: /var/lib/elasticsearch
#
# Path to log files:
#
path.logs: /var/log/elasticsearch
#
# ----------------------------------- Memory -----------------------------------
#
# Lock the memory on startup:
#
#bootstrap.memory_lock: true
#
# Make sure that the heap size is set to about half the memory available
# on the system and that the owner of the process is allowed to use this
# limit.
#
# Elasticsearch performs poorly when the system is swapping the memory.
#
# ---------------------------------- Network -----------------------------------
#
# By default Elasticsearch is only accessible on localhost. Set a different
# address here to expose this node on the network:
#
network.host: 0.0.0.0
#
# By default Elasticsearch listens for HTTP traffic on the first free port it
# finds starting at 9200. Set a specific HTTP port here:
#
http.port: 9200
#
# For more information, consult the network module documentation.
#
# --------------------------------- Discovery ----------------------------------
#
# Pass an initial list of hosts to perform discovery when this node is started:
# The default list of hosts is ["127.0.0.1", "[::1]"]
#
discovery.seed_hosts: ["172.16.0.160", "172.16.0.161", "172.16.0.162"]
#
# Bootstrap the cluster using an initial set of master-eligible nodes:
#
cluster.initial_master_nodes: ["172.16.0.160", "172.16.0.161", "172.16.0.162"]
#
# For more information, consult the discovery and cluster formation module documentation.
#
# ---------------------------------- Various -----------------------------------
#
# Require explicit names when deleting indices:
#
#action.destructive_requires_name: true
#
# 开启跨域访问支持,默认为false
http.cors.enabled: true
# 跨域访问允许的域名地址,(允许所有域名)以上使用正则
http.cors.allow-origin: "*"


启动Elasticsearch,三台同时启动

root@elastic-master:~# systemctl enable elasticsearch.service --now
root@elastic-slave1:~# systemctl enable elasticsearch.service --now
root@elastic-slave2:~# systemctl enable elasticsearch.service --now


查看Elasticsearch的状态

root@elastic-master:~# curl 172.16.0.160:9200
{
  "name" : "172.16.0.160",
  "cluster_name" : "elastic.example.com",
  "cluster_uuid" : "HaBrBW50QWOtf0w3_zWWaw",
  "version" : {
    "number" : "7.14.0",
    "build_flavor" : "default",
    "build_type" : "deb",
    "build_hash" : "dd5a0a2acaa2045ff9624f3729fc8a6f40835aa1",
    "build_date" : "2021-07-29T20:49:32.864135063Z",
    "build_snapshot" : false,
    "lucene_version" : "8.9.0",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}
解释:
	"name" : "172.16.0.160"
		主机节点

	"cluster_name" : "elastic.example.com"
    	集群的名称

	"cluster_uuid" : "HaBrBW50QWOtf0w3_zWWaw"
		集群的唯一id

	"tagline" : "You Know, for Search"
		标签
root@elastic-master:~# curl 172.16.0.161:9200
{
  "name" : "172.16.0.161",
  "cluster_name" : "elastic.example.com",
  "cluster_uuid" : "HaBrBW50QWOtf0w3_zWWaw",
  "version" : {
    "number" : "7.14.0",
    "build_flavor" : "default",
    "build_type" : "deb",
    "build_hash" : "dd5a0a2acaa2045ff9624f3729fc8a6f40835aa1",
    "build_date" : "2021-07-29T20:49:32.864135063Z",
    "build_snapshot" : false,
    "lucene_version" : "8.9.0",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}
root@elastic-master:~# curl 172.16.0.162:9200
{
  "name" : "172.16.0.162",
  "cluster_name" : "elastic.example.com",
  "cluster_uuid" : "HaBrBW50QWOtf0w3_zWWaw",
  "version" : {
    "number" : "7.14.0",
    "build_flavor" : "default",
    "build_type" : "deb",
    "build_hash" : "dd5a0a2acaa2045ff9624f3729fc8a6f40835aa1",
    "build_date" : "2021-07-29T20:49:32.864135063Z",
    "build_snapshot" : false,
    "lucene_version" : "8.9.0",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}

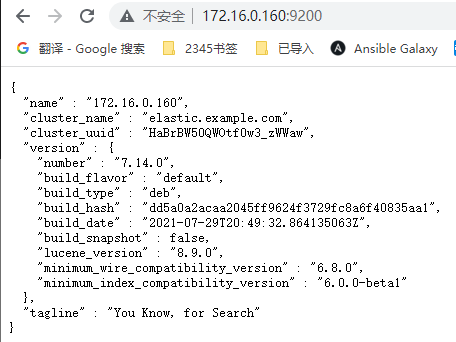

浏览器访问

http://172.16.0.160:9200




用浏览器查看es里面有那些内容

http://172.16.0.160:9200/_cat

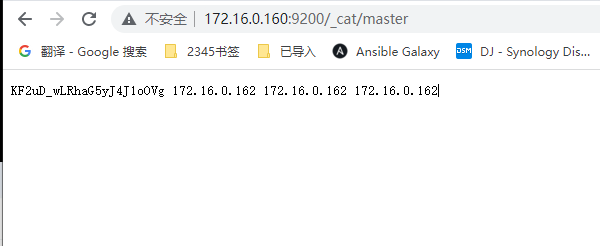

查看es的主节点的状态

http://172.16.0.160:9200/_cat/master

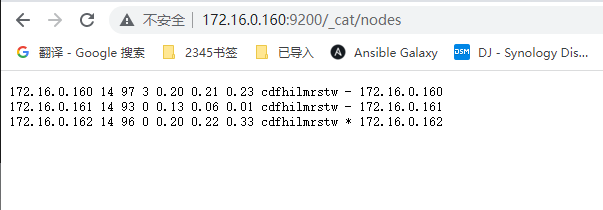

查看es的node节点的状态

http://172.16.0.160:9200/_cat/nodes




解释:

172.16.0.162 14 96 0 0.20 0.22 0.33 cdfhilmrstw * 172.16.0.162

*	这里的*表示选择了这台节点做为主节点

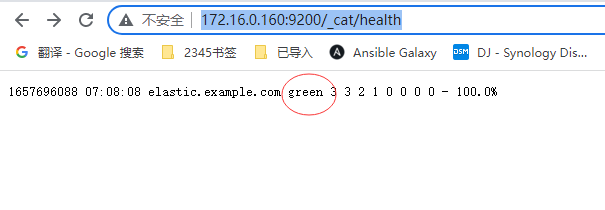

查看集群状态

http://172.16.0.160:9200/_cat/health



解释:

	集群中有三种颜色,黄色,红色,绿色
		yellow黄色
			集群中,有一台主机异常,不影响整体服务

		red红色
			集群崩溃

		green绿色
			集群中的所有节点运行正常


查看索引

root@elastic-master:~# curl -XGET 172.16.0.160:9200/_cat/indices


查看集群节点

root@elastic-master:~# curl -XGET 172.16.0.160:9200/_cat/nodes


查看索引

root@elastic-master:~# curl -XGET 172.16.0.160:9200/_cat/indices


创建索引

root@elastic-master:~# curl -XPUT 172.16.0.160:9200/index_test

root@elastic-master:~# curl -XGET 172.16.0.160:9200/_cat/indices


格式化展示

root@elastic-master:~# curl 172.16.0.160:9200/index_test?pretty
{
  "index_test" : {
    "aliases" : { },
    "mappings" : { },
    "settings" : {
      "index" : {
        "routing" : {
          "allocation" : {
            "include" : {
              "_tier_preference" : "data_content"
            }
          }
        },
        "number_of_shards" : "1",
        "provided_name" : "index_test",
        "creation_date" : "1657719071339",
        "number_of_replicas" : "1",
        "uuid" : "NKFiLL1ATE6sPGBRzPt55w",
        "version" : {
          "created" : "7140099"
        }
      }
    }
  }
}
解释:
	"number_of_shards" : "1",
		数据切片,提高吞吐量

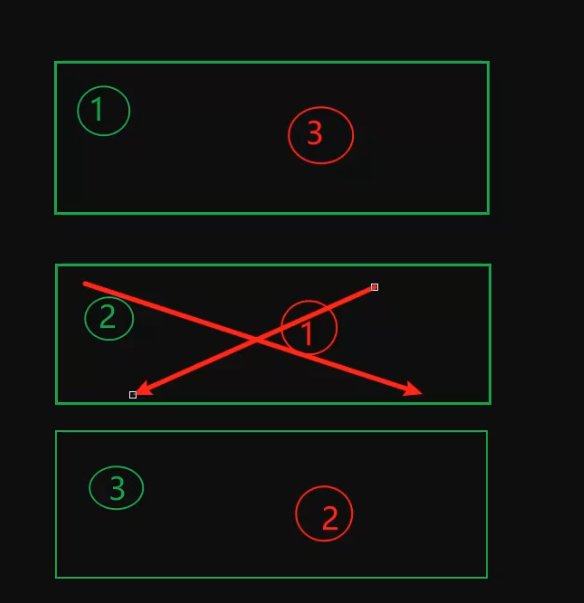

	"number_of_replicas" : "1",
		每台都有一个副本,实现高可用




删除索引

root@elastic-master:~# curl -XDELETE 172.16.0.160:9200/index_test

root@elastic-master:~# curl -XGET 172.16.0.160:9200/_cat/indices


批量删除

curl -s http://172.16.0.160:9200/_cat/indices | awk '{print $3}'

for index in $(curl -s http://172.16.0.160:9200/_cat/indices | awk '{print $3}')

do

curl -XDELETE 172.16.0.160:9200/$index

done


修改切片属性

curl -X PUT 172.16.0.160:9200/index_test -H 'Content-Type:application/json' -d '

{

  "settings" : {

   "number_of_shards" : 3,

   "number_of_replicas" : 1

  }

}'

curl 172.16.0.160:9200/index_test?pretty


注意:

 在设置切片属性的时候,一定要注意在历史数据中,最好不要存在同名的索引,否则报错

给elasticsearch的相关命令添加上环境变量,默认安装的没有环境变量,系统无法识别到这些命令

root@elastic-master:~# echo 'export PATH=/usr/share/elasticsearch/bin:$PATH' >> /etc/profile.d/elasticsearch.sh
root@elastic-master:~# source /etc/profile.d/elasticsearch.sh


常见插件

常见插件:

 分词插件:analysis-icu、analysis-ik、等

 管理插件:head、kopf、bigdest、等

 注意:

 随着elasticsearch的版本更新,很多之前可以直接安装的插件,目前无法直接安装了,

 需要采取自定义的方式来安装

 旧的插件地址

 https://www.elastic.co/guide/en/elasticsearch/plugins/2.4/management.html



官方地址

 https://www.elastic.co/guide/en/elasticsearch/plugins/current/index.html


查看目前环境的插件,检测是没有安装的

root@elastic-master:~# elasticsearch-plugin list
warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
Future versions of Elasticsearch will require Java 11; your Java version from [/data/server/jdk1.8.0_261/jre] does not meet this requirement. Consider switching to a distribution of Elasticsearch with a bundled JDK. If you are already using a distribution with a bundled JDK, ensure the JAVA_HOME environment variable is not set.


安装默认插件,安装中文语法分析后重启服务

如果安装失败重新再安装一边就行了,这里安装是需要联网的

172.16.0.160安装插件

root@elastic-master:~# elasticsearch-plugin install analysis-smartcn
warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
Future versions of Elasticsearch will require Java 11; your Java version from [/data/server/jdk1.8.0_261/jre] does not meet this requirement. Consider switching to a distribution of Elasticsearch with a bundled JDK. If you are already using a distribution with a bundled JDK, ensure the JAVA_HOME environment variable is not set.
-> Installing analysis-smartcn
-> Downloading analysis-smartcn from elastic
[=================================================] 100%
-> Installed analysis-smartcn
-> Please restart Elasticsearch to activate any plugins installed
root@elastic-master:~# elasticsearch-plugin install analysis-icu
warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
Future versions of Elasticsearch will require Java 11; your Java version from [/data/server/jdk1.8.0_261/jre] does not meet this requirement. Consider switching to a distribution of Elasticsearch with a bundled JDK. If you are already using a distribution with a bundled JDK, ensure the JAVA_HOME environment variable is not set.
-> Installing analysis-icu
-> Downloading analysis-icu from elastic
[=================================================] 100%
-> Installed analysis-icu
-> Please restart Elasticsearch to activate any plugins installed
root@elastic-master:~# systemctl restart elasticsearch.service


172.16.0.161安装插件,掠过安装返回结果

#先来添加环境变量
root@elastic-slave1:~#  echo 'export PATH=/usr/share/elasticsearch/bin:$PATH' >> /etc/profile.d/elasticsearch.sh
root@elastic-slave1:~# source /etc/profile.d/elasticsearch.sh

root@elastic-slave1:~# elasticsearch-plugin install analysis-smartcn
root@elastic-slave1:~# elasticsearch-plugin install analysis-icu
root@elastic-slave1:~# systemctl restart elasticsearch.service


172.16.0.162安装插件,掠过安装返回结果

#先来添加环境变量
root@elastic-slave2:~#  echo 'export PATH=/usr/share/elasticsearch/bin:$PATH' >> /etc/profile.d/elasticsearch.sh
root@elastic-slave2:~# source /etc/profile.d/elasticsearch.sh
root@elastic-slave2:~# elasticsearch-plugin install analysis-smartcn
root@elastic-slave2:~# elasticsearch-plugin install analysis-icu
root@elastic-slave2:~# systemctl restart elasticsearch.service


检查安装结果

root@elastic-slave2:~# elasticsearch-plugin list
warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
Future versions of Elasticsearch will require Java 11; your Java version from [/data/server/jdk1.8.0_261/jre] does not meet this requirement. Consider switching to a distribution of Elasticsearch with a bundled JDK. If you are already using a distribution with a bundled JDK, ensure the JAVA_HOME environment variable is not set.
analysis-icu
analysis-smartcn


离线方式安装,把插件下载好以后放到/usr/share/elasticsearch/plugins/的目录即可

root@elastic-slave2:~# ls /usr/share/elasticsearch/
NOTICE.txt  README.asciidoc  bin  jdk  lib  modules  plugins

root@elastic-slave2:~# ls /usr/share/elasticsearch/plugins/
analysis-icu  analysis-smartcn
#这个目录是存放离线插件的位置



本文 暂无 评论

Top
